 The Different Types of Junction Boxes

Whether you're working on a residential or commercial project, there are several types of junction box. Some are more important than others, and each has a specific purpose.

The National Electrical Code provides a chart that determines which box type you need, depending on the number and size of wires entering it. For example, if you have two 14-gauge wires, you'll need a 4" x 2-inch box, whereas 12-gauge wires require 2.25 cubic inches of space.

Octagon and Round Pan Boxes

Junction box types are distinguished from one another by their capacity to accommodate multiple electrical connections and a variety of wiring methods. These boxes are essential to any electrical installation. They protect the wires from weather damage, as well as help to prevent short-circuits and other hazards.

Standard rectangular boxes are most often used to house single light fixture switches and outlet receptacles. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 to 3 1/2 inches. Some of these boxes are gangable--that is, they can be linked together to form larger boxes for holding two or three devices side by side.

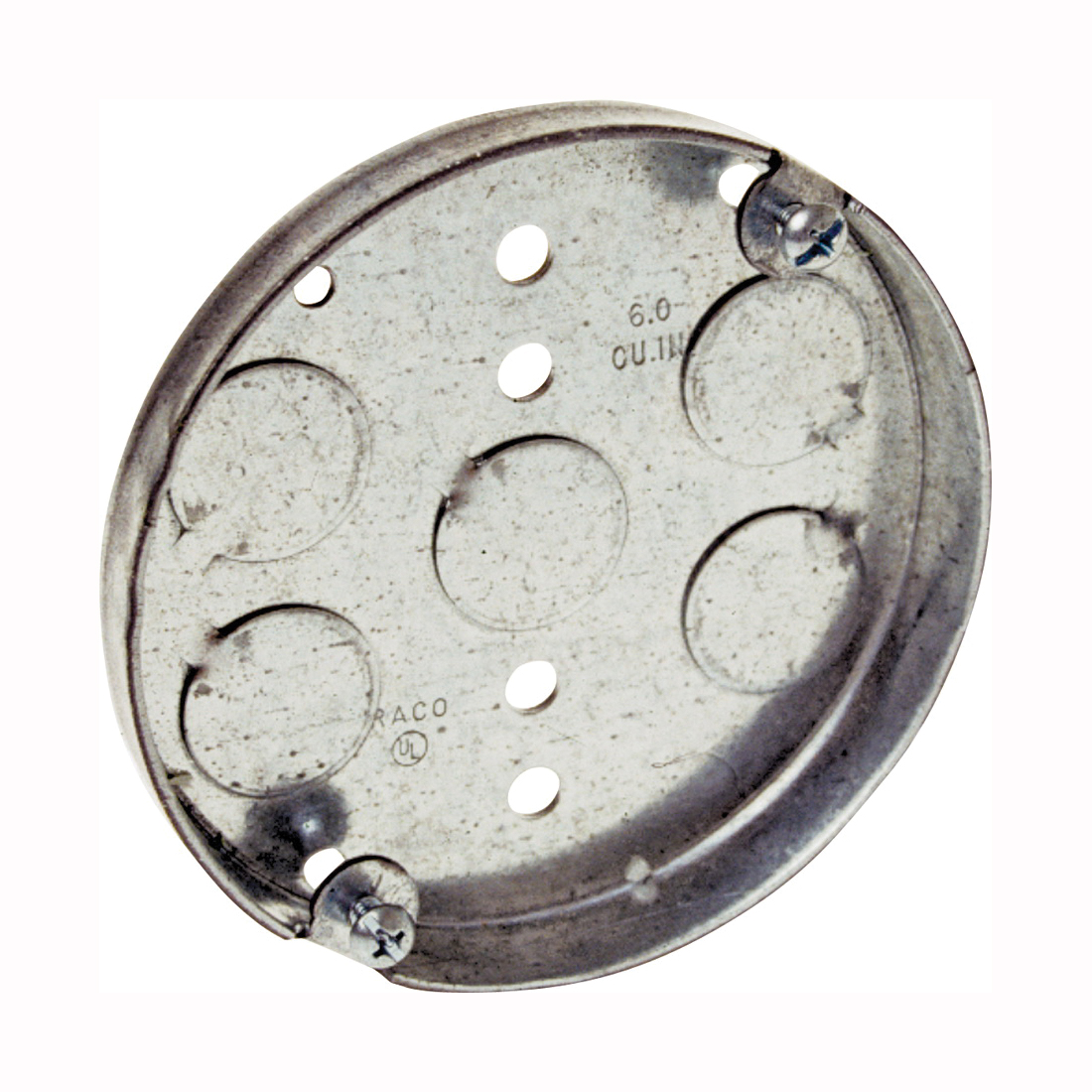

Round pan (pancake) boxes are shallow circular boxes that can hold ceiling- or wall-mounted fixtures that weigh no more than 50 pounds. They are usually only half or three-quarters of an inch deep, and they can be made from either plastic or durable metal with similar affordable prices.

Some of these boxes have fasteners, or “ears,” that attach to the surface they are installed on, preventing the tee box need to cut a hole in drywall for the box. They are ideal for installation on a wall or ceiling that has a smooth, textured surface like plaster.

They are also suitable for mounting ceiling fans, if they have been specifically designed to support them. The boxes should be rated for the weight of the ceiling fan and can be mounted with screws to studs or joists to provide a sturdy support structure.

Alternatively, these boxes may be affixed to the back of the framing, or they can be mounted between two framing members using solid-lumber blocking and at least two screws. This type of mounting is especially important for heavy lights or ceiling fans, and is an important step in securing them to a structurally sound wall or ceiling.

The National Electrical Code requires that all wire splices should be enclosed within the box and not be tangled or cross-threaded. If the splices are outside of the box, they could become tangled or twisted and become a fire hazard.

Outdoor Boxes

If you are installing a new electrical system, it is important to choose the right junction box. These boxes can be made of metal or plastic, and they protect the wires from water, dirt and other corrosive substances. They are also used to protect the inside of electrical conduits and the connections to the wall.

They are available in one- and two-gang configurations, and they can be installed behind or outside walls. Some have a removable cover and others are solid, which means they have no holes.

These are a great option for people who want to add an outlet or switch to their home without making any changes to the existing wiring. They are durable, easy to clean and water-resistant.

A good way to distinguish these types of junction boxes from each other is to read the NEMA rating that they carry. This will tell you if they are suitable for outdoor or indoor use, and how they are protected against coolants, oil and corrosives.

The NEMA rating will also tell you if the enclosure is weatherproof, and if it has gaskets and other features that protect the wiring and circuitry from the elements. These are especially important in outdoor locations, as it helps protect the wiring from the rain and snow.

In addition to a NEMA rating, you should also check the box's dimensions. It must be large enough to accommodate the wiring, switches or fixtures that will be plugged into it. If the wiring is too close together, it can cause an explosion or fire.

There are also handy boxes that can be placed on the surface of a wall or ceiling, where they will house light switches or receptacles. These are often used in areas where mounting a box behind the wall is too difficult.

Unlike the other junction boxes, these boxes are designed to be flush with the wall plane and do not protrude outward. This is important because it will make it easier for electricians to rewire the home.

These boxes are also called "new work boxes" because they are mounted as part of a new construction project. They are often placed between two studs with a bar hanger before applying drywall.

Indoor Boxes

When you need to install an electrical box in your home, it is important to know the difference between different junction box types. These boxes are used to enclose wire connections and help prevent short circuits that can result in fires. The types of junction boxes vary based on their size, shape and constituent materials, and it is essential to choose the right one for your project.

Standard electrical boxes are the primary type of electrical box found in most homes. The U branch box are available in various shapes and sizes and offer plenty of room for wiring connections. They are mainly used to install wall switches and outlets, but they can also be used as junction boxes to splice wires together.

Rectangular electrical boxes are ideal for mounting most wall switches and outlets, but they can also work as junction boxes for splicing multiple wires together. They are also available in both new-work and old-work styles, depending on the way you want to install them.

Square electrical boxes, also known as 4-inch boxes, are another popular choice for installing switches and outlets in both new-work and old-work designs. They are 4 inches in depth and have plenty of space for covering wire splices.

They also have knockouts for metal flex, a flexible metal hose that electrical wires can run through. These hoses provide added protection for your wires and are designed to fit most wall construction types.

Octagon and round pan junction boxes are commonly referred to as pancake boxes because they are shallow at less than an inch deep, but they are not the best choice for light fixtures or ceiling fans that weigh more than 50 pounds. These boxes are often sized to accommodate only three devices at a time, so you should choose the size carefully when selecting a box for your project.

In most cases, it is best to install the junction boxes in a place that is easily accessible in the future and where they will be covered by solid covers with no holes. It is also a good idea to use weatherproof covers if the box will be installed in a damp location.

Electronic Cases

The different junction box types are distinguished by their shapes and constituent materials. They can be made of a variety of metals and can be sized to accommodate multiple wire ways as well as fixtures such as light switches or receptacles.

A junction box can be used indoors or outdoors, depending on the type of environment and how much dust is present. Some are NEMA-rated to withstand dusty environments, while others can be IP-rated to withstand water and other elements.

These boxes are generally designed to be installed by a professional electrician and should meet local building codes as well as industry standards. They are also designed to be durable and last for many years.

There are several different plastics that are appropriate for electrical applications, including PPE+PS and SEBS. These back outlet box plastics are resistant to most chemicals and can handle high temperatures. They are also lightweight and can be easily machined.

Other material options include fiberglass, which can withstand corrosive liquids and is ideal for outdoor applications. It is also available in a variety of thicknesses.

Another option is carbon neutral bioplastic, which is a new type of plastic that has been certified as eco-friendly and can be recycled. It can be used for soft case enclosures in places where there is a need to make the products biodegradable.

The size and depth of an electronic case will determine whether it can hold all the necessary electrical components. The box needs to have enough room to house the wires, connectors and fixtures, as well as provide a secure seal to keep everything safe.

These boxes can be shaped into square, rectangular or even octagonal configurations. They are often fabricated from mild steel or stainless steel to give them a greater level of flame resistance and corrosion resistance.

They can also be molded in aluminum for an even higher degree of fire resistance and protection against a wider range of temperatures. These types of boxes are especially useful for a number of industrial and commercial uses.

These boxes can be used to protect a wide variety of electrical devices, such as lighting, appliances, and electrical outlets. They can also be adapted to house various circuits or split circuits.
